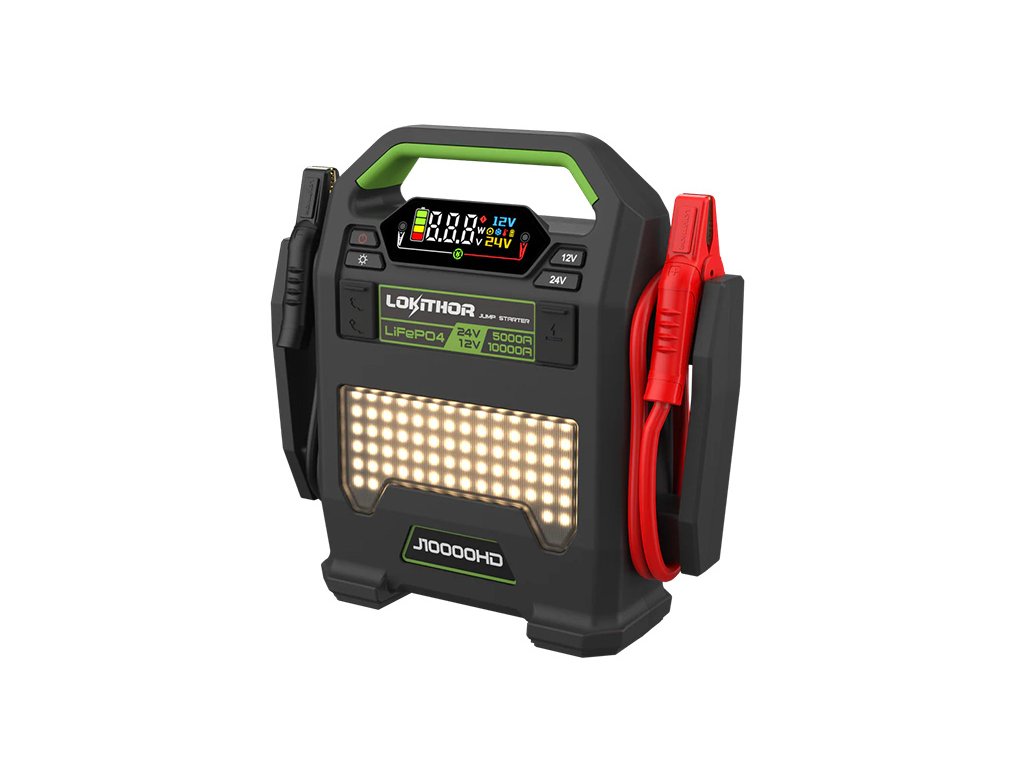

LOKITHOR Jump starter J10000HD, 12/24V, 10000A, 256Wh
Code: E8818Related products
Product detailed description
The Lokithor J10000HD is the top model in the Lokithor Heavy Duty series and is a truly robust starter designed for continuous professional operation. With both 12V and 24V starting, a single device can serve mixed fleets without the need for multiple devices. Switching the voltage is done by pressing the appropriate button for 2 seconds followed by a signal on the display.
The heart of the device is a LiFePO4 (lithium iron phosphate) battery with a capacity of 256 Wh, which offers more than 2,000 charging cycles, high thermal stability and a significantly longer lifespan compared to conventional lead-acid or Li-Ion starter sources.
The starter power supply is equipped with an intelligent BMS system with more than 10 protection elements against reverse polarity, short circuit, overvoltage, too deep discharge, overheating and incorrect operation. The clear 3.5" display shows battery status, startup mode and diagnostic information in real time. LED signaling informs you that the terminals on the battery are connected correctly.
Key benefits
- starting 12 V and 24 V vehicles in one device
- Extreme peak power up to 10,000 A (12 V) / 5,000 A (24 V)
- Starting current up to 5,000 A (12V) / 2,500 A (24 V)
- Starting engines up to 16 l petrol / 16 l diesel
- 256 Wh LiFePO4 battery with >2,000 cycle lifespan
- fast USB-C charging and up to 100W output (PD)
- 3.5" LCD display with diagnostics
- LED flashlight 1,000 lm (5 modes: 100%, 50%, 10%, flashing, strobe)
- professional BMS protection (against overvoltage, undervoltage, overcurrent, high temperature, low temperature, short circuit and polarity reversal.)
- Suitable for continuous service and industrial operation
Use for both 12V and 24V
- Trucks & Tractors
- Buses and commercial vehicles
- Construction and agricultural machinery
- Mining and industrial technology
- Service and assistance vehicles
- fleets with a combination of 12V / 24V systems
Package contents
- Lokithor J10000HD starter power supply
- Professional jumper cables with clamps approx. 170 cm each (non-separable)
- USB-C cable
- USB-A to USB-C Cable
- DC Charging Cable With Cigarette Socket
- DC Power Cord with Cigarette Socket
- AC adapter + power cord
- accessory bag
- User Manual
Additional parameters
| Category: | LOKITHOR |
|---|---|
| Warranty: | 24 months |
| Weight: | 13.5 kg |
| Model: | J10000HD |
| Internal battery capacity: | 256Wh |
| Starting voltage: | 12V/24V |
| Starting current: | 5000A(12V)/2500A(24V) |
| Peak current: | 10000A (12V) / 5000A (24V) |
| Engine rating: | 16-litre petrol / 16-litre diesel |
| LED luminosity: | 1000 Lumens |
| USB-C output: | 100W MAX |
| USB-A output: | 18W MAX |
| DC input: | 5~30V/5A (100W MAX) |
| 2x DC output: | 12V/5A max |
| Dimensions (mm): | 448 x 143 x 435 |
| The weight of the device itself: | 11.5 kg |
| Charging temperature: | 0 °C to +45 °C |
| Operating temperature: | -20°C to +60°C |
| Water and dust resistance: | IP65 |
| Battery type: | LiFePO4 |
| Charging time: | from 1.5 a.m. |
| Battery life: | >2000 cycles |
Package contents
